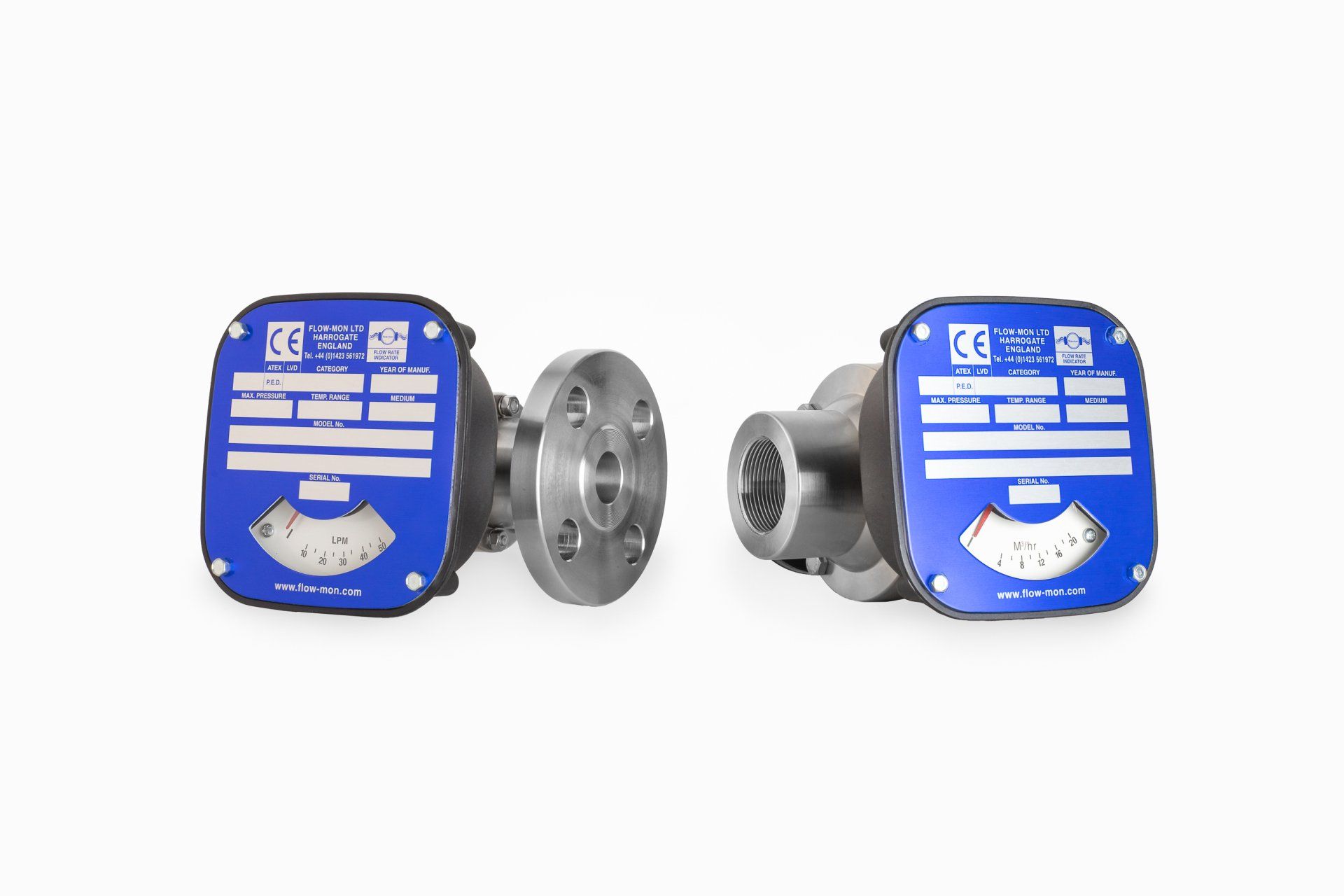

Medium Series Flow Rate Indicator
Medium Series Flow Rate Indicator
Applications
- Water
- Soluble Oils (Glycols)
- Synthetic Based Fluids
- Corrosive Fluids
- Solvents
- De-ionised Water
- Petroleum Based Fluids
- Coolants
- Paints
- Air & Gases
Switches
- SPDT 3 & 4 wire mechanical switch (gold available)
- DPDT 6 wire mechanical switch
- 4-20mA Output
- 0-10v Potentiometer
- Digital Rate Totaliser
- ATEX variants available
- Individually calibrated to any unit of measure
- Accuracy +/- 3% across full scale
- Single or dual scale
- Simple modular design
- Low pressure drop
- Viscosities up to 600cSt
- 1% rate of repeatability at switch set point
- Installed in any position
- Weatherproof enclosure box
- Capable of twice the indicated flow
Flow-Mon Accreditations
